Representative application
Marine Grade Pivot Doors
Marine Grade Pivot Doors
Large-Format Pivot Door Systems with Marine Grade Corrosion Resistance
Pivot doors represent the ultimate statement in architectural entrance design — large-format doors that rotate on a central or offset pivot axis rather than traditional side hinges. This mechanism enables door panels of exceptional size and weight, creating dramatic entrance features for luxury villas, premium commercial buildings, and coastal properties.
MOQ10 units
FOB Price$200-450 / sqm
Lead Time35 days
Premium Marine Grade Pivot Door Manufacturer
Pivot doors represent the ultimate statement in architectural entrance design — large-format doors that rotate on a central or offset pivot axis rather than traditional side hinges. This mechanism enables door panels of exceptional size and weight, creating dramatic entrance features for luxury villas, premium commercial buildings, and coastal properties.
StarveilBuild precision-engineered marine grade pivot doors are specifically designed for coastal and high-humidity environments. Our systems integrate core advantages: heavy-duty pivot mechanism rated for panels up to 1500mm x 3000mm, marine grade 316 stainless steel hardware, AAMA 2605 PVDF coating for salt spray resistance, thermal break aluminum profiles, and premium sealing systems for weather protection.
- Heavy-Duty Pivot Mechanism — Precision-engineered pivot system supports door panels up to 1500mm x 3000mm and 200kg weight with smooth, effortless operation.
- Marine Grade 316 SS Hardware — All hardware components use 316 stainless steel for superior corrosion resistance in coastal and marine environments.
- AAMA 2605 PVDF Coating — Premium PVDF coating passes 3000-hour salt spray testing, ensuring long-lasting finish in harsh coastal conditions.
- Thermal Break Performance — Polyamide thermal break profiles deliver energy efficiency despite the large door panel size.
- Dramatic Architectural Impact — Large-format pivot doors create stunning entrance features that enhance building aesthetics and property value.
Key Features
1. Heavy-Duty Pivot Mechanism
Precision-engineered pivot system supports door panels up to 1500mm x 3000mm and 200kg weight with smooth, effortless operation.
2. Marine Grade 316 SS Hardware
All hardware components use 316 stainless steel for superior corrosion resistance in coastal and marine environments.
3. AAMA 2605 PVDF Coating
Premium PVDF coating passes 3000-hour salt spray testing, ensuring long-lasting finish in harsh coastal conditions.
4. Thermal Break Performance
Polyamide thermal break profiles deliver energy efficiency despite the large door panel size.
5. Dramatic Architectural Impact
Large-format pivot doors create stunning entrance features that enhance building aesthetics and property value.
Performance Parameters
Every unit is tested for wind pressure, water penetration, air infiltration, and thermal performance. Parameters below are documented on the parameter sheet supplied with your quote.
| Parameter | Value | Standard | Status |
|---|---|---|---|
| Wind Resistance | 2000Pa | EN 12210 | Tested |
| Water Penetration | 600Pa | EN 1027 | Tested |
| Air Infiltration | ≤0.5 L/s·m² | EN 12207 | Tested |
| U-Value (Double) | 1.4 W/m²K | EN ISO 10077 | Energy |
| Salt Spray Resistance | 3000 hours | AAMA 2605 | Marine |
| Sound Reduction | Rw 34-38dB | EN ISO 717-1 | Acoustic |
| Max Panel Size | 1500 x 3000mm | Custom | Custom |
Note: Custom sizes outside the standard range are available. Contact our engineering team to review your drawings.
Frequently Asked Questions
Pivot doors rotate on a central or offset pivot axis rather than traditional side hinges. This mechanism enables large-format door panels that create dramatic architectural entrance features.
Marine grade pivot doors use 316 stainless steel hardware and AAMA 2605 PVDF coating for superior corrosion resistance in coastal and marine environments.
We manufacture pivot doors up to 1500mm wide x 3000mm high, with panel weights up to 200kg. The pivot mechanism is precision-engineered for each panel size.
Yes. Our marine grade pivot doors are specifically designed for coastal environments with 316 SS hardware and 3000-hour salt spray resistant PVDF coating.
Pivot doors feature multi-point locking systems and reinforced profiles. The pivot mechanism itself is inherently secure due to the weight and size of the panel.
System Configuration
Configure Your Marine Grade Pivot Doors
Engineering dimensions define your system. Configure each during quote or let our engineers recommend based on your project parameters.
Profile Colors
200+ RAL colors + wood grain + PVDF
Glass Types
- Double Glazing
- Triple Glazing
- Low-E Glass
- Laminated Glass
- Custom Combinations
Hardware
- Chinese Standard
- German Roto
- Siegenia
- 304 SS Components
Finishes
- 200+ RAL Colors
- PVDF (coastal grade)
- Anodized
- Wood Grain Transfer
- AAMA 2604 Powder Coat

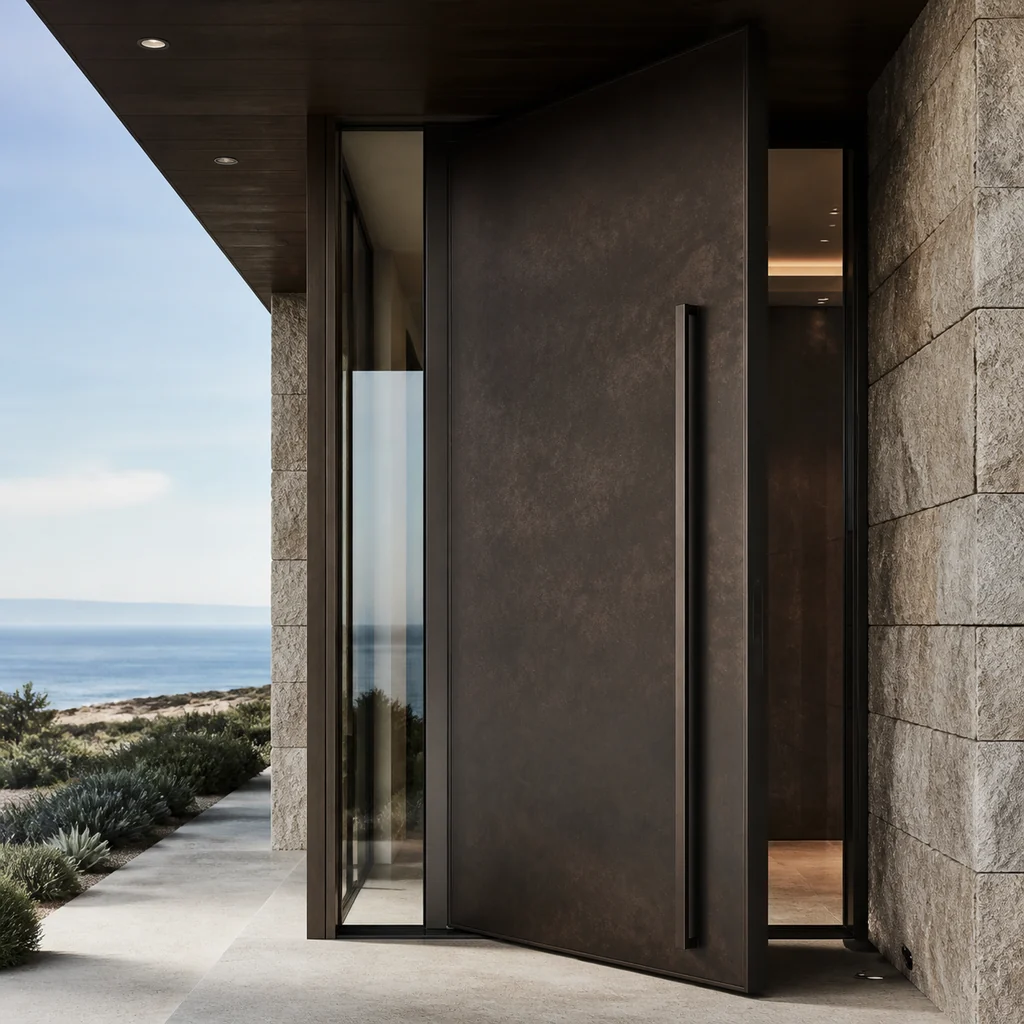

Representative Application
How Marine Grade Pivot Doors Work in Real Architecture
A project-context visualization showing the product in a suitable building, opening and climate scenario. Final specifications are engineered to your drawings.
Technical Resources
Technical Files for Marine Grade Pivot Doors
Request product data, CAD sections, glass and finish options, or send your drawings for an engineered response.
Quick Estimate
Project Area Calculator
Enter your wall dimensions to estimate window or door quantity and rough material area.
Estimate Your Project
Wall Area鈥?m虏
Est. Units Needed鈥?/strong>
Openable Area鈥?m虏
Product Inquiry
Request a Quote for Pivot Doors
Fill out the form below. Our engineers will configure the system to your project parameters and respond within 24 hours.
