High-Performance Aluminum Windows Designed for Noise Reduction
StarveilBuild acoustic aluminum windows are engineered for projects prioritizing noise control, indoor comfort and privacy. Combining optimized aluminum frame structures, advanced multi-layer sealing and professional acoustic glazing, our window systems effectively cut external noise penetration and create peaceful indoor environments. Tailored for residential, hospitality and commercial constructions, StarveilBuild delivers custom acoustic aluminum window solutions for urban and noise-sensitive projects globally.
Professional Acoustic Aluminum Window Manufacturer
Expanding urban density makes traffic, airport, railway and city noise a major challenge for building comfort. StarveilBuild acoustic aluminum windows integrate mature technology: thermal break aluminum profiles, multi-channel weather sealing systems, laminated acoustic glass options, and precision fabrication standards.
Our sound insulation window solutions help architects, property developers and builders construct quieter, more livable indoor spaces. Flexible OEM solutions are available for global distributors and contractors.
- High-Performance Acoustic Glass Options — laminated acoustic glass with asymmetric thickness combinations
- Multi-Layer Sealing System — multiple interlocking EPDM gaskets minimize air leakage
- Thermal Break Aluminum Profile — combine acoustic performance with energy efficiency
- Customized Acoustic Performance — solutions customized for Rw 35+ and Rw 40+ configurations
- Modern Architectural Appearance — slim sightline frames with expansive glass surfaces
- Full OEM Manufacturing — custom production per architectural drawings with white-label options
Why Choose StarveilBuild Acoustic Windows
Engineering-Driven Product Design
In-depth optimization on profile geometry, glass matching and sealing performance to satisfy project acoustic standards
Tailored Noise Reduction Solutions
We provide targeted glass recommendations, window layout suggestions and fully customized production based on on-site noise conditions
Integrated Aluminum Building Envelope Supply
We supply acoustic windows, aluminum door systems and curtain wall solutions for one-stop project procurement
Key Features
1. High-Performance Acoustic Glass Options
Glass configuration is the core of noise reduction. We offer laminated acoustic glass, double insulated glazing, triple insulated glazing, and asymmetric thickness glass combinations.
- Laminated acoustic glass
- Double insulated glazing
- Triple insulated glazing
- Asymmetric thickness glass combinations
Benefits: Benefits: Effective noise attenuation, enhanced safety, improved indoor comfort
2. Multi-Layer Sealing System
Great sound insulation relies on minimal air leakage. Our multi-layer interlocking EPDM gaskets and streamlined frame structure reduce noise transmission.
- Multiple interlocking EPDM gaskets
- Streamlined frame structural design
- Precise sealed corner connections
- Improved overall airtightness
Benefits: Benefits: Less noise transmission, superior weather resistance, better energy efficiency
3. Thermal Break Aluminum Profile
Combine acoustic performance with energy efficiency using thermal break insulated aluminum frames that block heat conduction.
- Thermal break insulated aluminum frames
- Block heat conduction between interior and exterior
- Stabilize indoor temperature
- Long-lasting structural durability
4. Customized Acoustic Performance
Noise conditions vary greatly for different sites. Solutions customized according to surrounding environmental noise level, project acoustic standards, building location, and selected glass assembly.
- Rw 35+ acoustic configurations
- Rw 40+ acoustic configurations
- Higher-grade systems for demanding projects
- Site-specific customization
Note: Actual acoustic performance depends on window dimensions, glass specification, installation craft and site conditions.
5. Modern Architectural Appearance
Superior sound performance without sacrificing aesthetics, with slim sightline frames and expansive glass surfaces.
- Slim sightline aluminum frames
- Expansive glass surfaces
- Wide range of custom coating colors
- Contemporary profile designs
Perfect for: Perfect for modern architectural projects
Glass Options
We offer multiple professional glazing configurations to match different climate zones, energy codes, and performance requirements.
Laminated Acoustic Glass
Recommended for city apartments, hotels, and roadside buildings. Delivers outstanding noise reduction, impact safety, and UV shielding.
- Outstanding noise reduction
- Impact safety
- UV shielding
- Roadside building suitable
Double Glazed Acoustic Glass
Fit for general residential buildings with moderate sound insulation requirements.
- Moderate sound insulation
- General residential suitable
- Cost-effective
- Reliable performance
Triple Glazing
Fit for high-performance buildings and cold climate zones with boosted thermal insulation and upgraded acoustic performance.
- Boosted thermal insulation
- Upgraded acoustic performance
- Cold climate optimized
- High-performance buildings
Premium Hardware System
StarveilBuild acoustic windows are equipped with multi-point locking hardware, concealed heavy-duty hinges, anti-corrosion stainless steel components, and ergonomic operation handles for long-term stable performance.
Locking System
- Multi-point locking hardware
- Concealed heavy-duty hinges
- Precision perimeter locking
- Ergonomic handles
Sealing System
- Multi-layer interlocking EPDM gaskets
- Precise sealed corner connections
- Streamlined frame design
- Optimized airtightness
Hardware Brands
- Chinese Standard (cost-effective)
- German Roto (premium)
- Siegenia (precision engineering)
Frame Finishes
200+ RAL colors + wood grain + PVDF
Our hardware and sealing package guarantees minimal air leakage, tight sealing, and long service life for acoustic window systems in noise-sensitive environments.
Performance Parameters
Every unit is tested for wind pressure, water penetration, air infiltration, thermal performance, and acoustic insulation. Parameters below are documented on the parameter sheet supplied with your quote.
| Parameter | Value | Standard | Status |
|---|---|---|---|
| Wind Resistance | 1200Pa | EN 12210 | Tested |
| Water Penetration | 450Pa | EN 1027 | Tested |
| Air Infiltration | ≤0.5 L/s·m² | EN 12207 | Tested |
| Sound Reduction (Rw 35) | Rw 35dB | EN ISO 717-1 | Acoustic |
| Sound Reduction (Rw 40) | Rw 40dB | EN ISO 717-1 | Acoustic |
| U-Value (Double) | 1.6 W/m²K | EN ISO 10077 | Energy |
| Glass Type | Laminated Acoustic | EN 12600 | Acoustic |
Technical Specifications
| Product Type | Acoustic Aluminum Window |
|---|---|
| Frame Material | Thermal Break Aluminum Alloy |
| Glass Options | Laminated / Double / Triple Glazing |
| Acoustic Rating | Rw 35+ / Rw 40+ Custom Configurations |
| Sealing System | Multi-layer Weather Sealing Gaskets |
| Profile Type | Custom Aluminum System |
| Hardware | Multi-point Locking Hardware |
| Surface Treatment | Powder Coating / Anodizing / PVDF |
| Application | Residential & Commercial |
| Service | OEM & Project Customization Available |
Note: Custom sizes outside the standard range are available with a minimum order quantity of 100 units. Contact our engineering team to review your drawings.
Application Scenarios
StarveilBuild acoustic aluminum windows are engineered for diverse noise-sensitive residential, hospitality and commercial architectural projects worldwide.

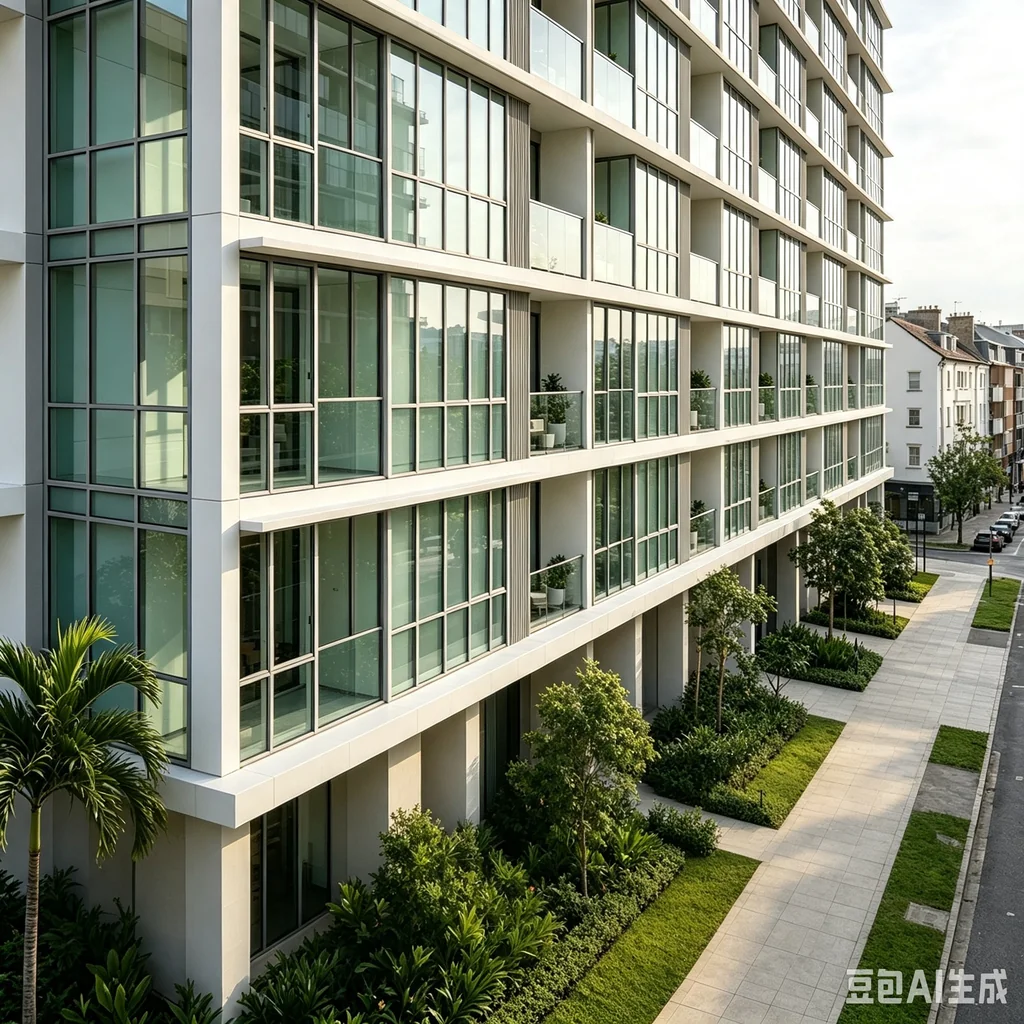

Urban Residential Buildings
Perfectly tailored for noise-sensitive urban construction:
- City apartments & high-rise residences
- Luxury private homes
- Road traffic noise reduction
- Urban ambient noise control

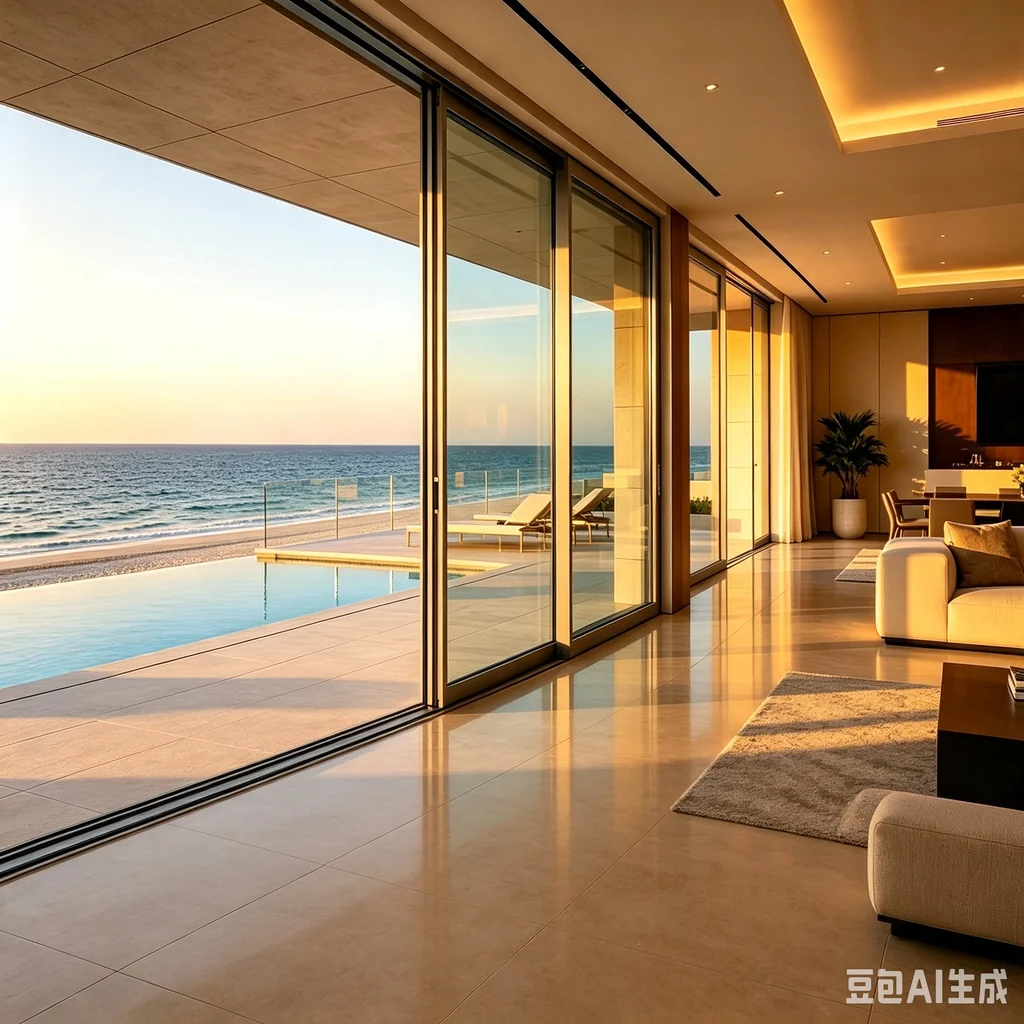

Hospitality Industry
Engineered to meet hotel acoustic requirements:
- Hotels & resorts
- Guest room constructions
- Higher guest satisfaction
- Improved room privacy

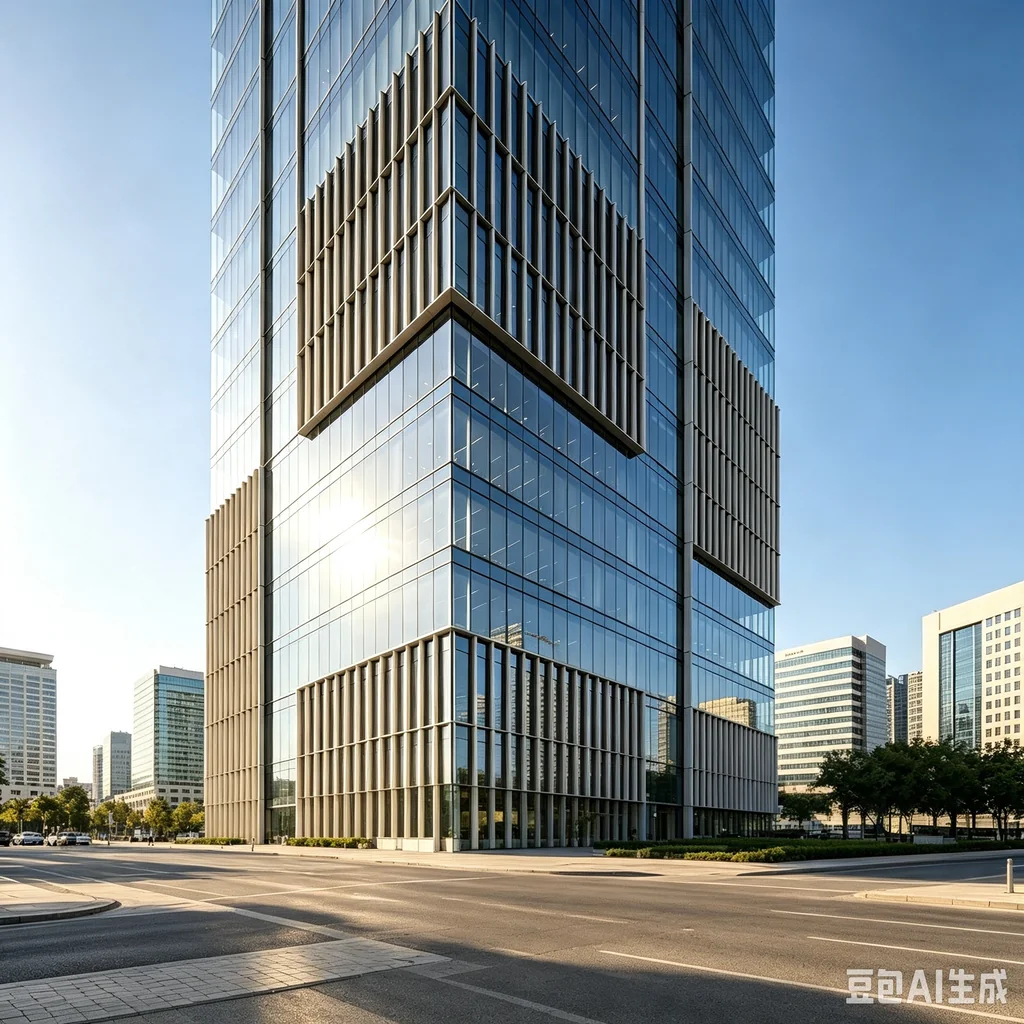

Commercial & Noise-Prone Zones
Built for noise-sensitive commercial and infrastructure projects:
- Office premises & schools
- Medical facilities
- Highway & railway adjacent projects
- Airport noise zone buildings
Product Gallery
Complete visual documentation of our acoustic aluminum windows, from laminated glass structure and sealing systems to real apartment and commercial project installations.

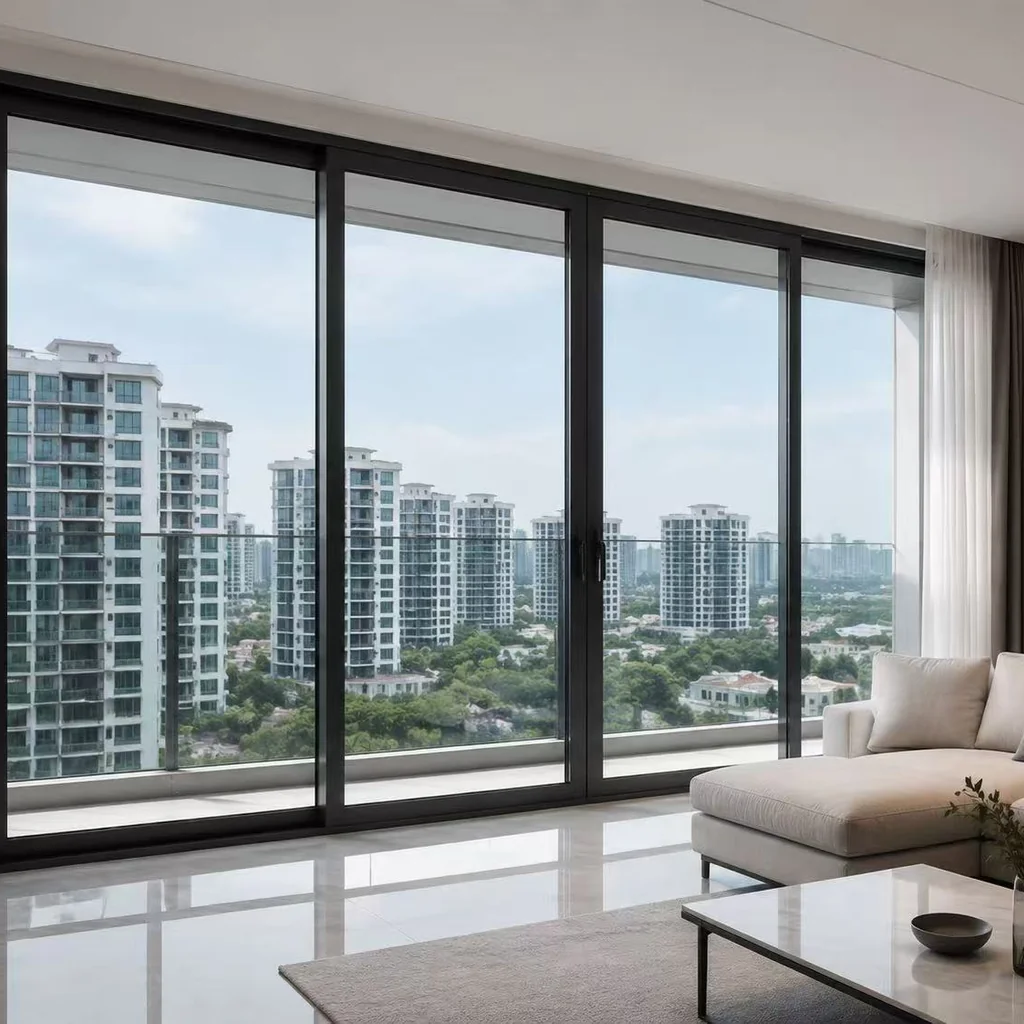

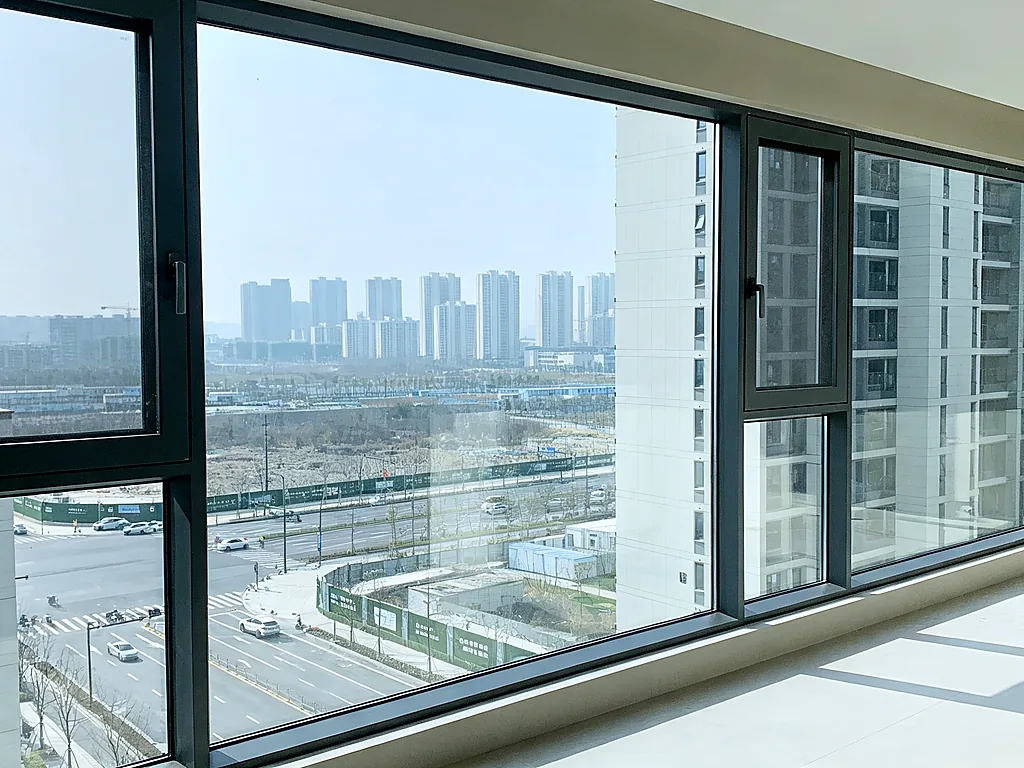

Apartment Acoustic Installation
Soundproof aluminum window installation in urban residential apartment, Rw 45 dB acoustic glazing, traffic noise reduction for city living

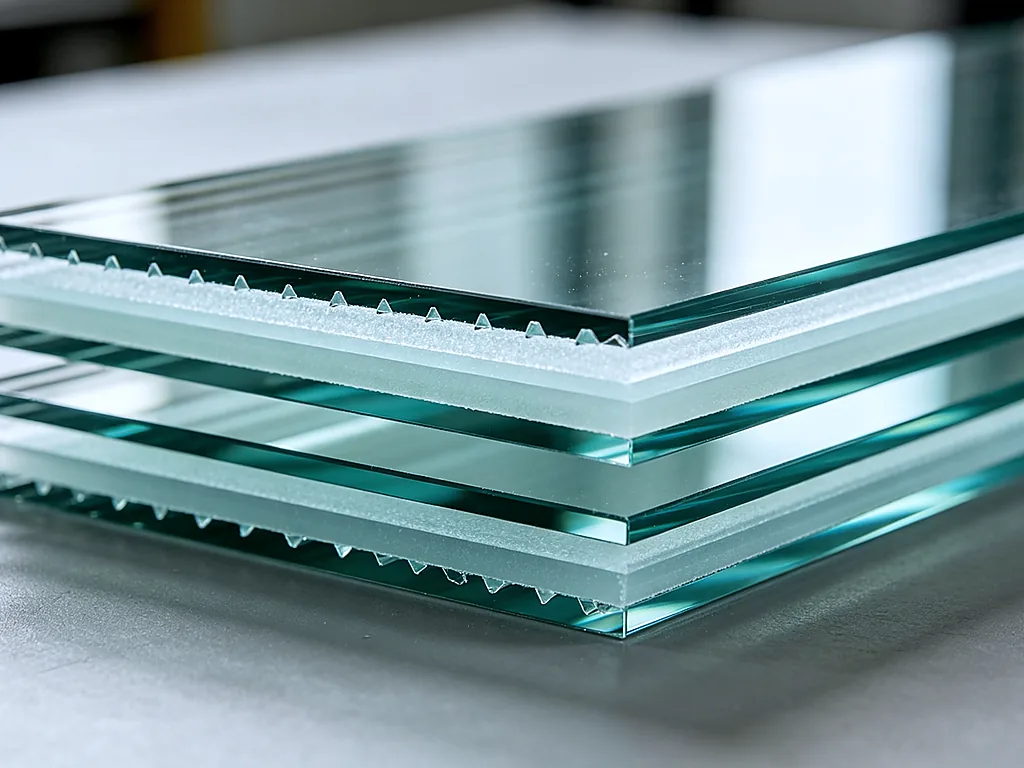

Laminated Acoustic Glass Section
Multi-layer PVB laminated acoustic interlayer, asymmetric glass thickness for broadband sound attenuation, 6mm+0.76PVB+4mm configuration

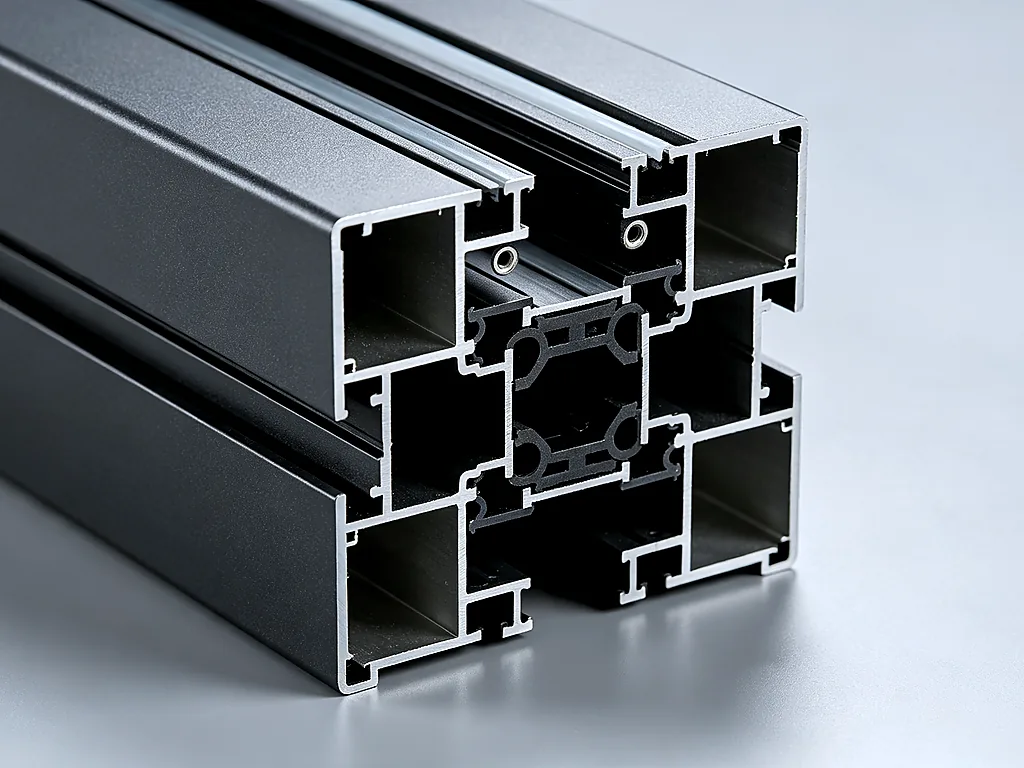

Thermal Break Acoustic Profile
PA66 GF25 insulated thermal break with enhanced acoustic chamber design, 34mm strip width, combined thermal and sound insulation performance

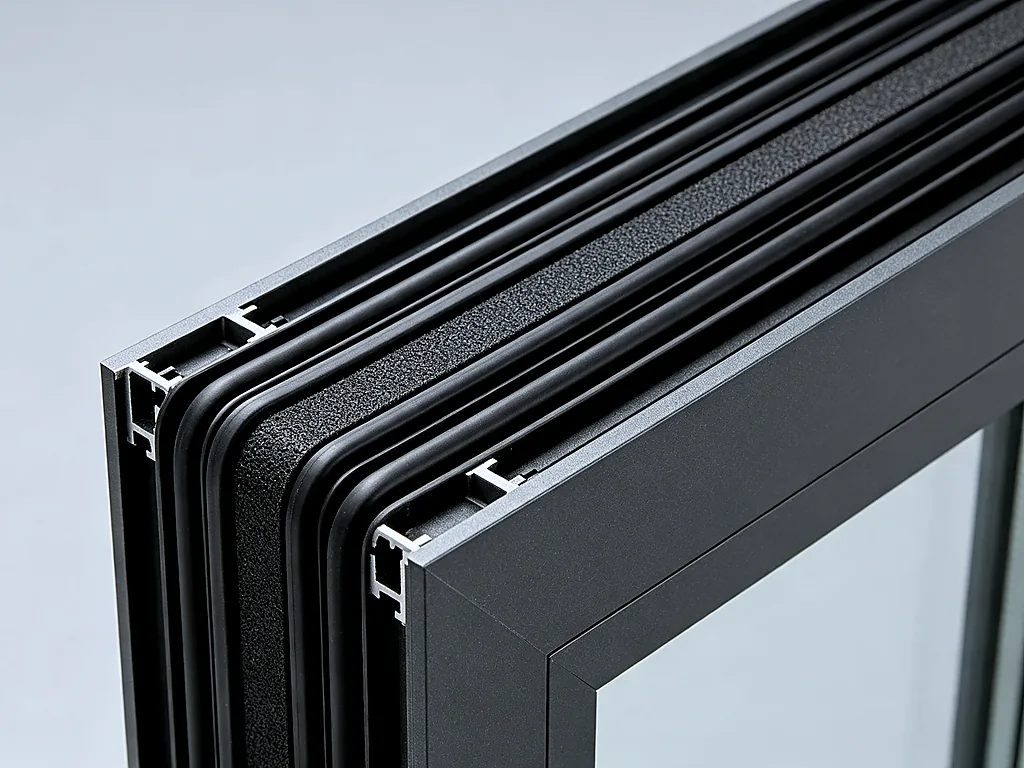

Precision Acoustic Sealing
Triple EPDM compression gasket system tuned for acoustic performance, zero air leakage, integrated acoustic mastic seal at frame-wall junction

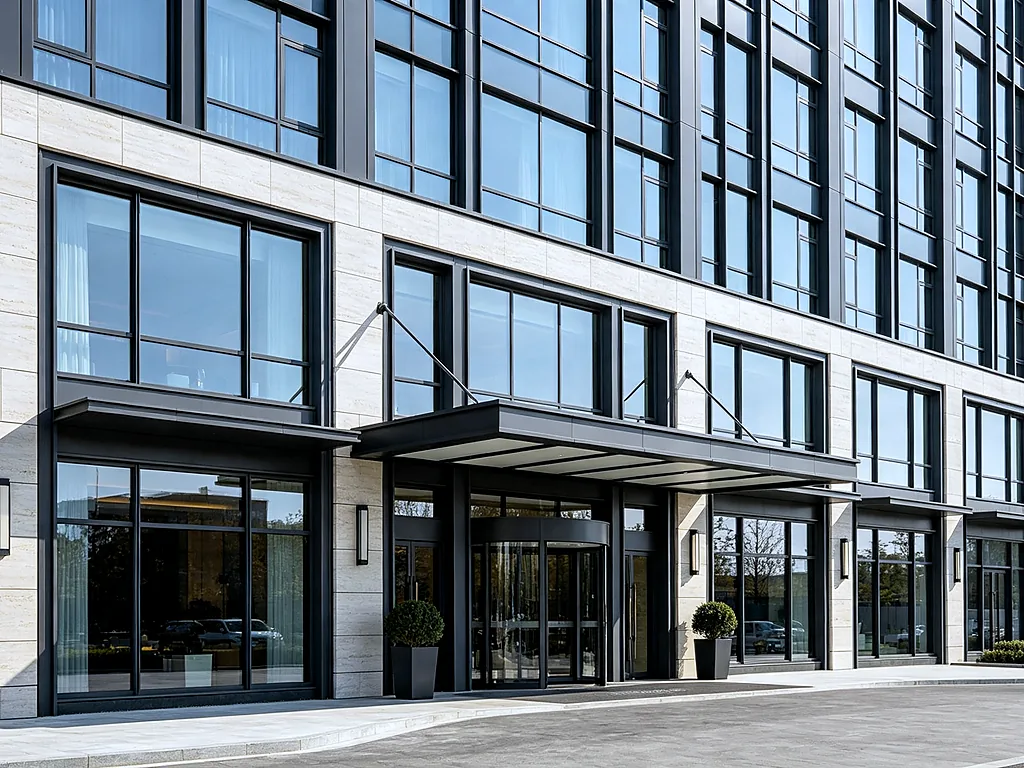

Completed Acoustic Project
Full acoustic window package installed in mixed-use development, Rw 42-45 dB measured on-site, hotel and residential tower application

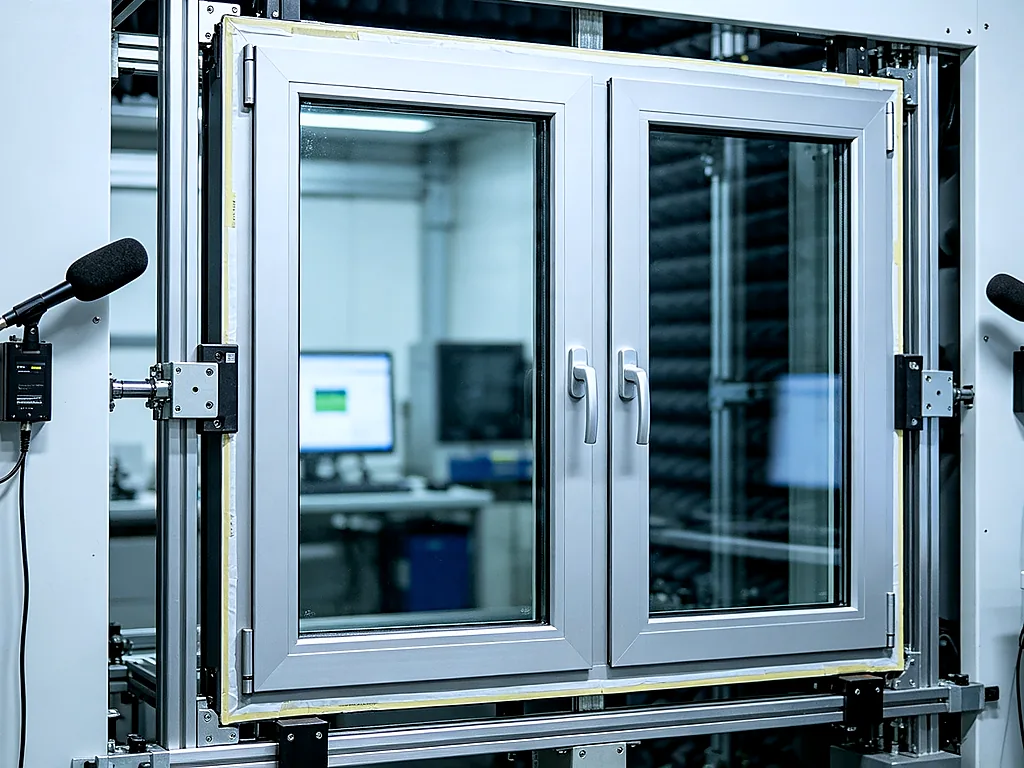

Acoustic Lab Performance Testing
ISO 10140-2 laboratory acoustic testing, sound reduction index measurement, Rw(C;Ctr) rating certification, quality inspection in controlled environment
Frequently Asked Questions
No window can completely eliminate all noise. Acoustic aluminum windows greatly reduce external noise transmission and significantly improve indoor comfort.
The overall effect depends on glass type, glass thickness, air cavity width, window size, sealing quality and installation workmanship.
Rw stands for weighted sound reduction index, the standard indicator for building components. Higher Rw values represent better sound insulation capacity.
Yes. StarveilBuild develops bespoke acoustic window solutions according to each project’s technical requirements.
Yes. Thermal break frames and insulated glass provide both noise reduction and energy-saving performance.
Configure Your Acoustic Window
Four parameter groups define your unit. Select during quote or let our engineers recommend based on your noise conditions.
Profile Colors
200+ RAL colors + wood grain + PVDF
Glass Types
- Laminated Acoustic Glass
- Double Glazed Acoustic
- Triple Glazing
- Low-E Glass
- Custom Combinations
Hardware
- Chinese Standard
- German Roto
- Siegenia
- 304 SS Acoustic Grade
Finishes
- 200+ RAL Colors
- PVDF (coastal grade)
- Anodized
- Wood Grain Transfer
- AAMA 2604 Powder Coat
Built With Acoustic Aluminum Windows
Real architectural projects delivered with engineered acoustic aluminum window systems.
