Passive House Aluminum Windows
Passive House Aluminum Windows
High-Performance Aluminum Windows Designed for Energy Efficient Buildings
StarveilBuild passive house aluminum windows are engineered to meet strict standards for thermal insulation, airtightness and long-term energy conservation. Equipped with advanced thermal break aluminum profiles, premium glazing and multi-layer precision sealing, our window systems help architects and contractors hit stringent energy performance benchmarks. Custom high-performance setups including triple glazing and low U-value designs are available, ideal for passive house constructions, green sustainable buildings and energy-saving residential developments.
Energy Efficient Aluminum Window Manufacturer
Sustainable modern architecture demands window systems that balance minimalist aesthetics and outstanding thermal performance. Conventional aluminum windows suffer from high heat transfer. StarveilBuild solves this challenge via advanced thermal break technology, optimized frame geometry and high-performance insulated glass.
Our energy-saving aluminum windows are developed for passive house developments, low-energy buildings, luxury modern villas, eco-friendly residential communities, and energy-efficient commercial constructions. Combining aluminum's structural durability with upgraded insulation technology, StarveilBuild delivers window systems adaptable to various climate zones worldwide. Flexible OEM solutions are available for global partners.
- Advanced Thermal Break Aluminum Profiles — thermal break strips block heat conduction between internal and external frames
- Triple Glazing Options — triple insulated glass with Low-E coatings and warm-edge spacers
- Low Thermal Transmittance Design — configurations reach Uw ≤0.8 W/m²K
- Enhanced Airtight Performance — multi-layer weather gaskets and precision sealing system
- Modern Aluminum Design — slim sightline frames with expansive glass surfaces
- Full OEM Customization — custom sizes, colors, glass and hardware per project drawings
Why Choose StarveilBuild Passive House Windows
Performance-Driven Manufacturing
Strict control over thermal performance, structural stability, weather resistance and customized engineering
Climate-Tailored Energy Solutions
Solutions customized according to local climate, architectural design, glass demands and energy performance targets
Complete Aluminum Building Envelope Systems
We supply energy-efficient windows, aluminum door systems, curtain walls and OEM manufacturing services
Key Features
1. Advanced Thermal Break Aluminum Profiles
Thermal break strips separate internal and external aluminum frames to block heat conduction, boosting thermal insulation and minimizing energy loss.
- Boosted thermal insulation
- Minimized energy loss
- Stable indoor comfort
- Lower risk of surface condensation
2. Triple Glazing Options
High-end glazing upgrades thermal and acoustic performance with triple insulated glass units, Low-E coatings, warm-edge spacers, and argon gas filling.
- Triple insulated glass units
- Low-E coatings
- Warm-edge spacers
- Argon gas filling
Benefits: Benefits: Superior insulation, effective noise reduction, optimized solar heat control
3. Low Thermal Transmittance Design
Customizable systems for projects requiring ultra-low U-values, with configurations reaching Uw ≤0.8 W/m²K.
- Configurations reach Uw ≤0.8 W/m²K
- Reinforced frame insulation structures
- Matched high-performance glass combinations
- Optimized for passive house standards
Note: Final performance depends on window dimension, glass specification, profile selection and project requirements.
4. Enhanced Airtight Performance
Tight air control is critical for energy-efficient buildings, featuring multi-layer weather gaskets and precision sealing systems.
- Multi-layer weather gaskets
- Precision sealing system
- Optimized corner joint treatment
- Professional installation guidance
Benefits: Benefits: Reduced air infiltration, improved indoor comfort, higher overall energy efficiency
5. Modern Aluminum Design
Top-tier performance without sacrificing architectural appearance, with slim sightline frames and expansive glass surfaces.
- Slim sightline aluminum frames
- Expansive glass surfaces
- Wide range of custom colors
- Premium architectural surface finishes
Suitable for: Suitable for: Contemporary homes, luxury villas, modern apartments
Glass Options
We offer multiple professional glazing configurations to match different climate zones, energy codes, and performance requirements.
Triple Insulated Glass
Recommended for cold climate zones and passive house energy-saving projects. Delivers enhanced thermal insulation and stable indoor comfort.
- Enhanced thermal insulation
- Stable indoor comfort
- Lower heating consumption
- Passive house optimized
Low-E Glass
Provides solar heat regulation, cuts energy expenditure, and offers effective UV protection for year-round comfort.
- Solar heat regulation
- Cut energy expenditure
- Effective UV protection
- Year-round comfort
Acoustic Laminated Glass
Recommended for urban areas and dense residential districts. Provides significant noise attenuation and improved living comfort.
- Significant noise attenuation
- Improved living comfort
- Urban area suitable
- Safety enhancement
Premium Hardware System
StarveilBuild passive house windows are equipped with European standard hardware systems, multi-point locking mechanisms, concealed heavy-duty hinges, and long-lasting corrosion-resistant components.
Locking System
- European standard multi-point locking
- Concealed heavy-duty hinges
- Precision perimeter locking
- Long-lasting components
Hinges & Accessories
- Concealed hinge options
- Stainless steel components
- Anti-corrosion finishing
- Smooth operation
Hardware Brands
- Chinese Standard (cost-effective)
- German Roto (premium)
- Siegenia (precision engineering)
Frame Finishes
200+ RAL colors + wood grain + PVDF
Our hardware package guarantees tight sealing, smooth operation, and long service life for energy-efficient window systems in passive house and sustainable construction projects.
Performance Parameters
Every unit is tested for wind pressure, water penetration, air infiltration, thermal performance, and acoustic insulation. Parameters below are documented on the parameter sheet supplied with your quote.
| Parameter | Value | Standard | Status |
|---|---|---|---|
| Wind Resistance | 1200Pa | EN 12210 | Tested |
| Water Penetration | 400Pa | EN 1027 | Tested |
| Air Infiltration | ≤0.5 L/s·m² | EN 12207 | Tested |
| U-Value (Triple) | ≤0.8 W/m²K | EN ISO 10077 | Energy |
| U-Value (Double) | 1.4 W/m²K | EN ISO 10077 | Energy |
| Sound Reduction | Rw 35-40dB | EN ISO 717-1 | Acoustic |
| Airtightness | Class 4 | EN 12207 | Tested |
Technical Specifications
| Product Type | Energy Efficient Aluminum Window |
|---|---|
| Frame Material | Thermal Break Aluminum Alloy |
| Glass Options | Double / Triple Glazing / Low-E / Laminated |
| Glass Type | Low-E / Laminated / Insulated Glass |
| Thermal Performance | Custom Uw ≤0.8 W/m²K Configurations Available |
| Sealing System | Multi-layer Weather Sealing |
| Hardware | High-performance Multi-point Locking System |
| Surface Treatment | Powder Coating / Anodizing / PVDF |
| Application | Residential & Commercial |
| Service | Full Customization & OEM Available |
Note: Custom sizes outside the standard range are available with a minimum order quantity of 100 units. Contact our engineering team to review your drawings.
Application Scenarios
StarveilBuild passive house aluminum windows are engineered for the world's most demanding energy-efficient building projects.
Passive House Projects
Engineered for low-energy and sustainable construction:
- Low-energy private homes
- Sustainable buildings
- Green architecture developments
- Passive house certified projects
Residential Buildings
Perfectly tailored for modern residential construction:
- Luxury villas & modern apartments
- New residential estates
- Eco-friendly communities
- Energy-efficient renovations
Commercial Projects
Built for energy-saving commercial buildings:
- Office buildings
- Educational facilities
- Energy-saving commercial developments
- Green certified buildings
Product Gallery
Full visual reference of our passive house aluminum window series, including thermal break profile cross-sections, triple glazing structure, hardware details and real project installations.

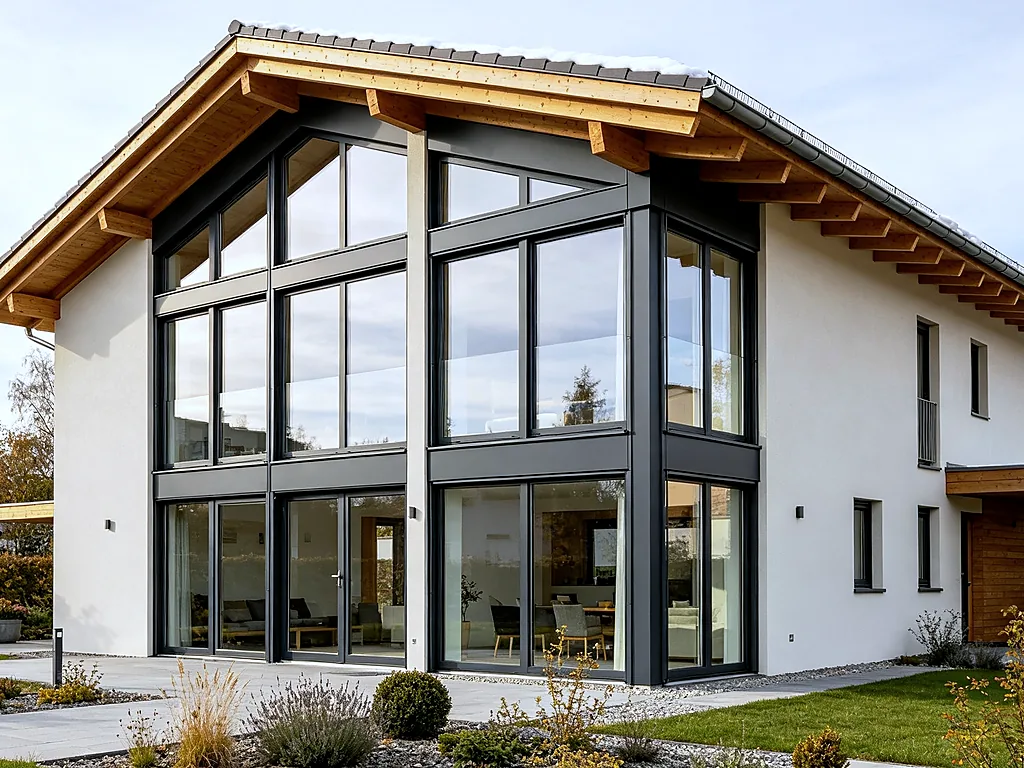

Passive House Villa Installation
Energy-efficient triple-glazed window with thermal break frame, Uw 0.8 passive house ready, tilt & turn European style installation in modern villa

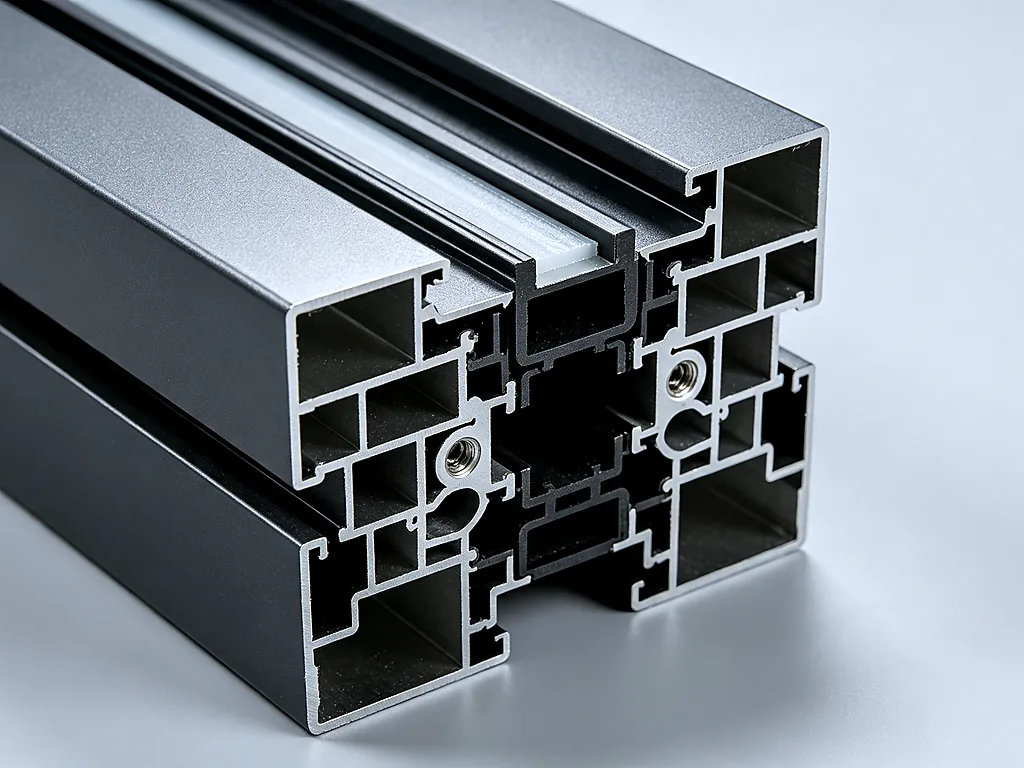

Thermal Break Profile Cross-Section
Multi-chamber PA66 GF25 thermal break aluminum profile, warm edge spacer, triple EPDM gasket sealing system for maximum insulation performance

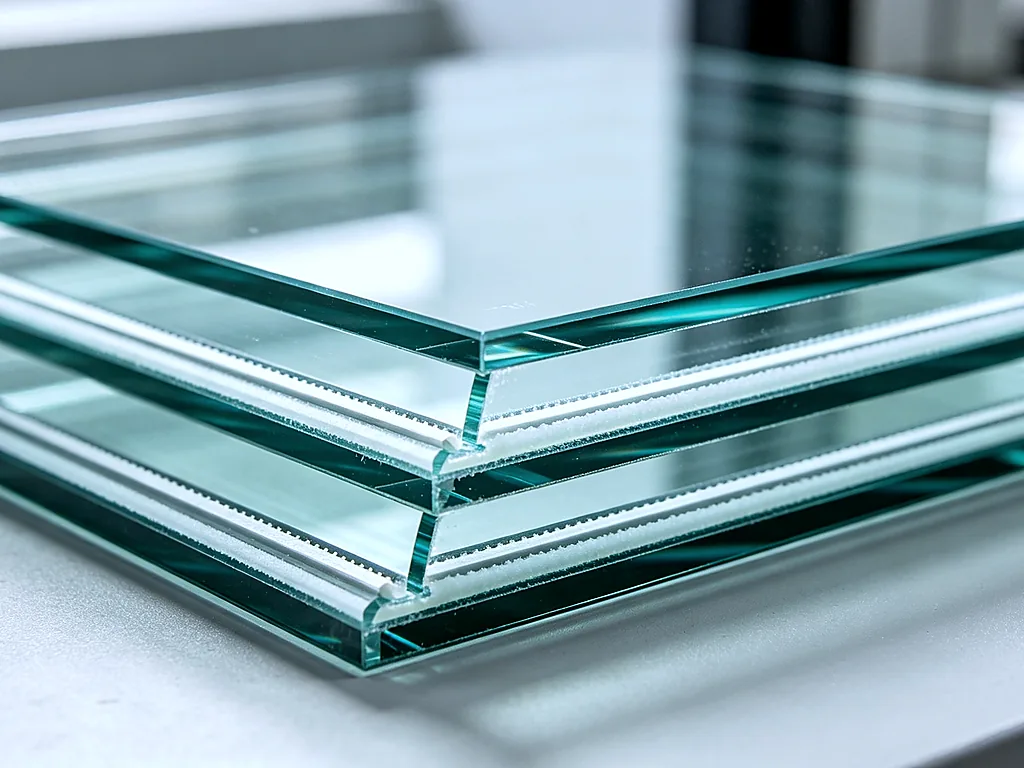

Triple Glazing Glass Structure
Low-E triple glazing with argon gas fill, warm edge spacer, 0.5 W/m2K center-pane U-value, sound insulation Rw 42 dB

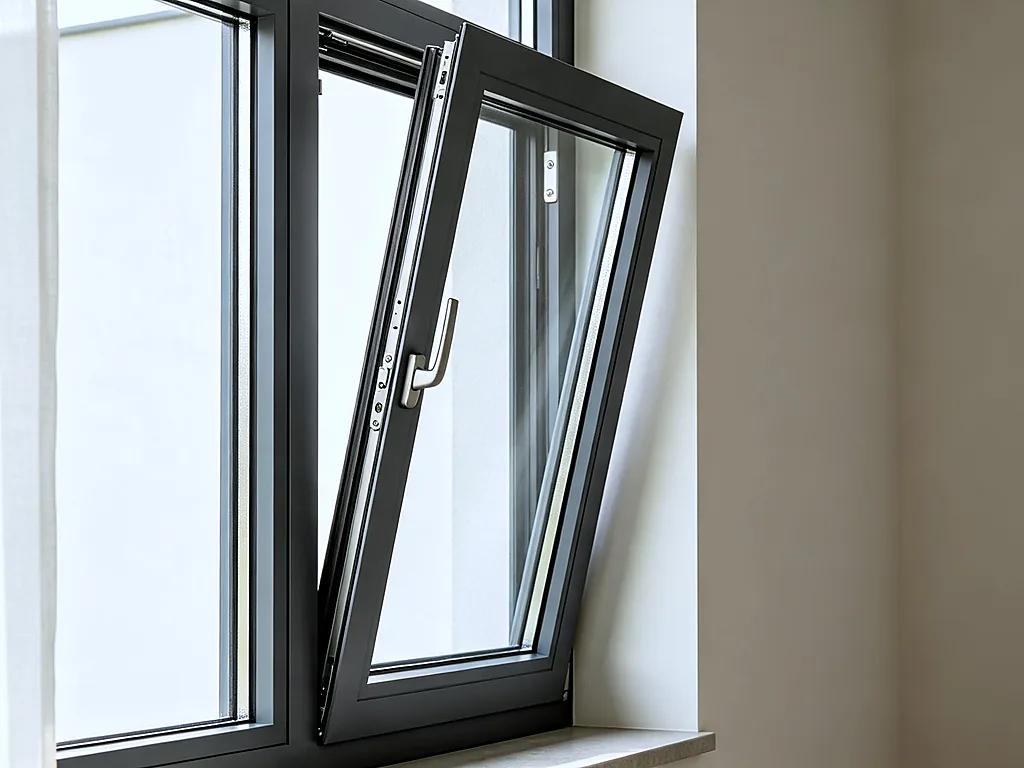

Tilt & Turn Hardware Installation
European tilt & turn mechanism with multi-point locking, 6 adjustable friction stays, concealed hinge system for clean aesthetic

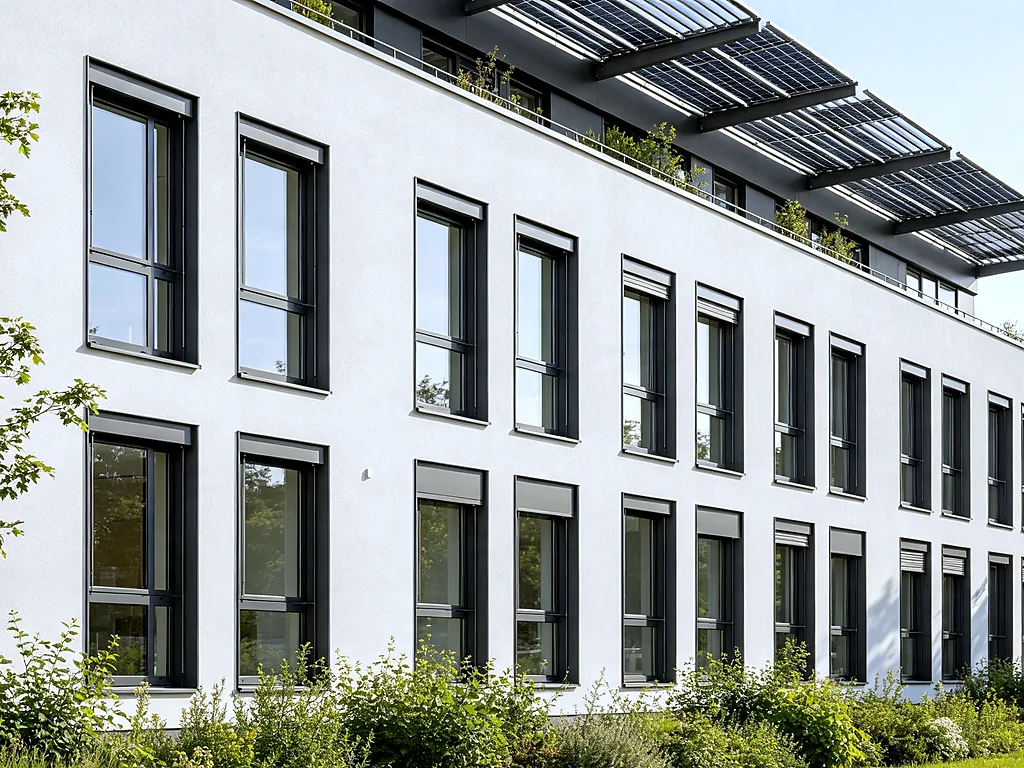

Energy-Efficient Building Project
Completed passive house residential project with full aluminum window & door package, PHI-ready energy performance, ultra-low heating demand

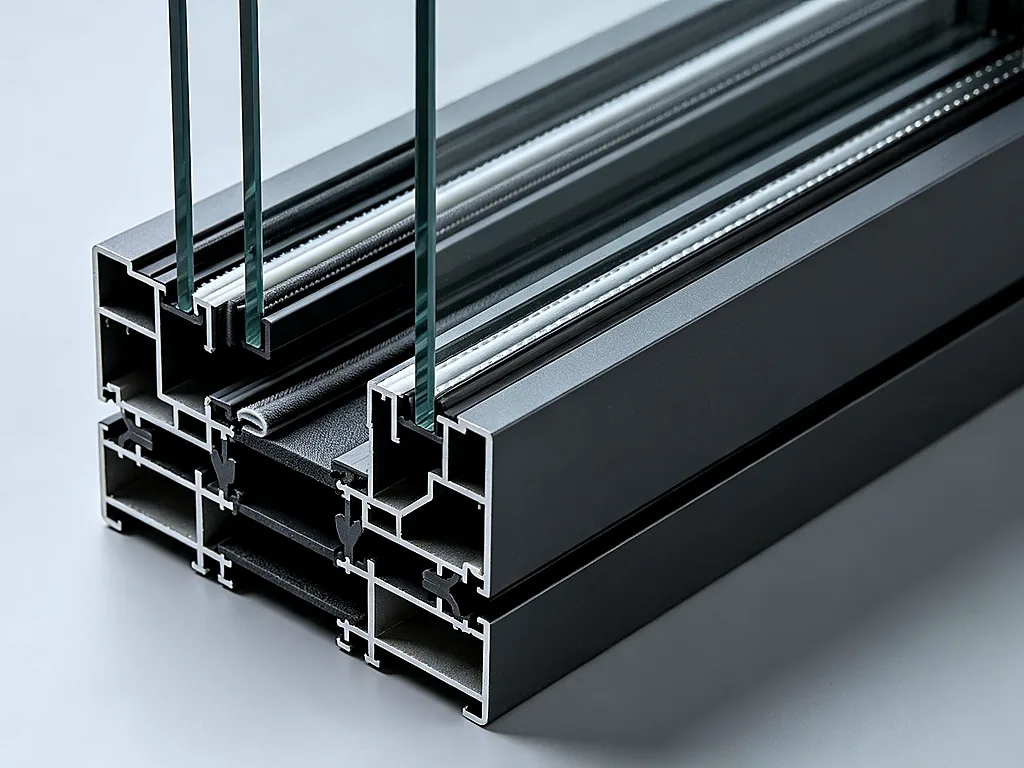

Multi-Layer Sealing Detail
Three-layer EPDM compression gasket system, integrated drainage channel, air permeability Class 4, water tightness Class E1200
Frequently Asked Questions
Yes. Our aluminum window systems can be configured to meet the performance requirements of passive house and low-energy building projects.
Yes. Selected combinations of profiles and glazing can reach Uw ≤0.8 W/m²K. Exact figures depend on system layout and project specifications.
Triple glazing with Low-E coating is the preferred solution for high-performance passive house constructions.
Yes. We support custom sizes, frame colors, glass combinations and hardware selections.
Absolutely. With thermal break technology and optimized insulated glass, aluminum windows can deliver excellent energy-saving performance.
Configure Your Passive House Window
Four parameter groups define your unit. Select during quote or let our engineers recommend based on your energy performance targets.
Profile Colors
200+ RAL colors + wood grain + PVDF
Glass Types
- Triple Insulated Glass
- Low-E Glass
- Acoustic Laminated Glass
- Double Glazing
- Custom Combinations
Hardware
- Chinese Standard
- German Roto
- Siegenia
- European Standard Multi-Point Lock
Finishes
- 200+ RAL Colors
- PVDF (coastal grade)
- Anodized
- Wood Grain Transfer
- AAMA 2604 Powder Coat
Built With Passive House Windows
Real architectural projects delivered with energy-efficient passive house window systems.
Download Technical Datasheet or Discuss Your Custom System
Get the full passive house window technical data, CAD package, or start a project quote with your drawings. We respond within 24 hours.
Project Area Calculator
Enter your wall dimensions to estimate window or door quantity and rough material area.
Estimate Your Project
Request a Quote for Passive House Windows
Fill out the form below. Our engineers will configure the system to your project parameters and respond within 24 hours.
