Narrow Frame Aluminum Windows
Narrow Frame Aluminum Windows
Ultra-Slim Profile Windows with Maximum Glass Area for Modern Architecture
Narrow frame aluminum windows represent the pinnacle of modern architectural glazing — ultra-slim profiles that minimize visible frame area while maximizing glass surface, creating seamless visual connections between interior and exterior spaces. These windows are the preferred choice for luxury villas, premium commercial buildings, and contemporary architectural projects.
MOQ20 units
FOB Price$80-150 / sqm
Lead Time30 days
Premium Narrow Frame Aluminum Window Manufacturer
Narrow frame aluminum windows represent the pinnacle of modern architectural glazing — ultra-slim profiles that minimize visible frame area while maximizing glass surface, creating seamless visual connections between interior and exterior spaces. These windows are the preferred choice for luxury villas, premium commercial buildings, and contemporary architectural projects.
StarveilBuild precision-engineered narrow frame windows combine aesthetic minimalism with structural performance. Our systems integrate core advantages: ultra-narrow frame profiles as slim as 45mm sightline, high-strength aluminum alloy for structural integrity, advanced thermal break technology for energy efficiency, premium hardware for smooth operation, and fully customizable configurations for fixed, casement, or sliding operation modes.
- Ultra-Slim 45mm Sightline — Minimalist frame design reduces visible aluminum to an absolute minimum, maximizing glass area and visual clarity.
- High-Strength Aluminum Alloy — Engineered profiles maintain structural integrity despite narrow dimensions, ensuring wind resistance and safety.
- Advanced Thermal Break — Polyamide thermal break strips deliver superior insulation performance despite the slim profile design.
- Premium Hardware Integration — Concealed hinges and locks maintain the minimalist aesthetic while ensuring smooth and secure operation.
- Multiple Opening Modes — Available in fixed, casement, awning, or tilt-turn configurations within the same narrow frame system.
Key Features
1. Ultra-Slim 45mm Sightline
Minimalist frame design reduces visible aluminum to an absolute minimum, maximizing glass area and visual clarity.
2. High-Strength Aluminum Alloy
Engineered profiles maintain structural integrity despite narrow dimensions, ensuring wind resistance and safety.
3. Advanced Thermal Break
Polyamide thermal break strips deliver superior insulation performance despite the slim profile design.
4. Premium Hardware Integration
Concealed hinges and locks maintain the minimalist aesthetic while ensuring smooth and secure operation.
5. Multiple Opening Modes
Available in fixed, casement, awning, or tilt-turn configurations within the same narrow frame system.
Performance Parameters
Every unit is tested for wind pressure, water penetration, air infiltration, and thermal performance. Parameters below are documented on the parameter sheet supplied with your quote.
| Parameter | Value | Standard | Status |
|---|---|---|---|
| Wind Resistance | 1600Pa | EN 12210 | Tested |
| Water Penetration | 500Pa | EN 1027 | Tested |
| Air Infiltration | ≤0.3 L/s·m² | EN 12207 | Tested |
| U-Value (Triple) | 0.9 W/m²K | EN ISO 10077 | Energy |
| U-Value (Double) | 1.3 W/m²K | EN ISO 10077 | Energy |
| Sound Reduction | Rw 34-38dB | EN ISO 717-1 | Acoustic |
| Frame Sightline | 45mm (Ultra-Slim) | Custom | Custom |
Note: Custom sizes outside the standard range are available. Contact our engineering team to review your drawings.
Frequently Asked Questions
Narrow frame windows use ultra-slim aluminum profiles (as narrow as 45mm sightline) to minimize visible frame area, maximizing glass surface for a minimalist architectural aesthetic.
Yes. Despite the slim profile, our windows use advanced thermal break technology and can achieve U-values as low as 0.9 W/m2K with triple glazing.
Yes. High-strength aluminum alloy maintains structural integrity for large panels. We can manufacture narrow frame windows up to 2500mm height.
Our narrow frame system supports fixed, casement, awning, and tilt-turn opening modes within the same slim profile design.
Absolutely. Narrow frame windows are the preferred choice for luxury villas, premium commercial buildings, and award-winning architectural projects worldwide.
System Configuration
Configure Your Narrow Frame Aluminum Windows
Engineering dimensions define your system. Configure each during quote or let our engineers recommend based on your project parameters.
Profile Colors
200+ RAL colors + wood grain + PVDF
Glass Types
- Double Glazing
- Triple Glazing
- Low-E Glass
- Laminated Glass
- Custom Combinations
Hardware
- Chinese Standard
- German Roto
- Siegenia
- 304 SS Components
Finishes
- 200+ RAL Colors
- PVDF (coastal grade)
- Anodized
- Wood Grain Transfer
- AAMA 2604 Powder Coat

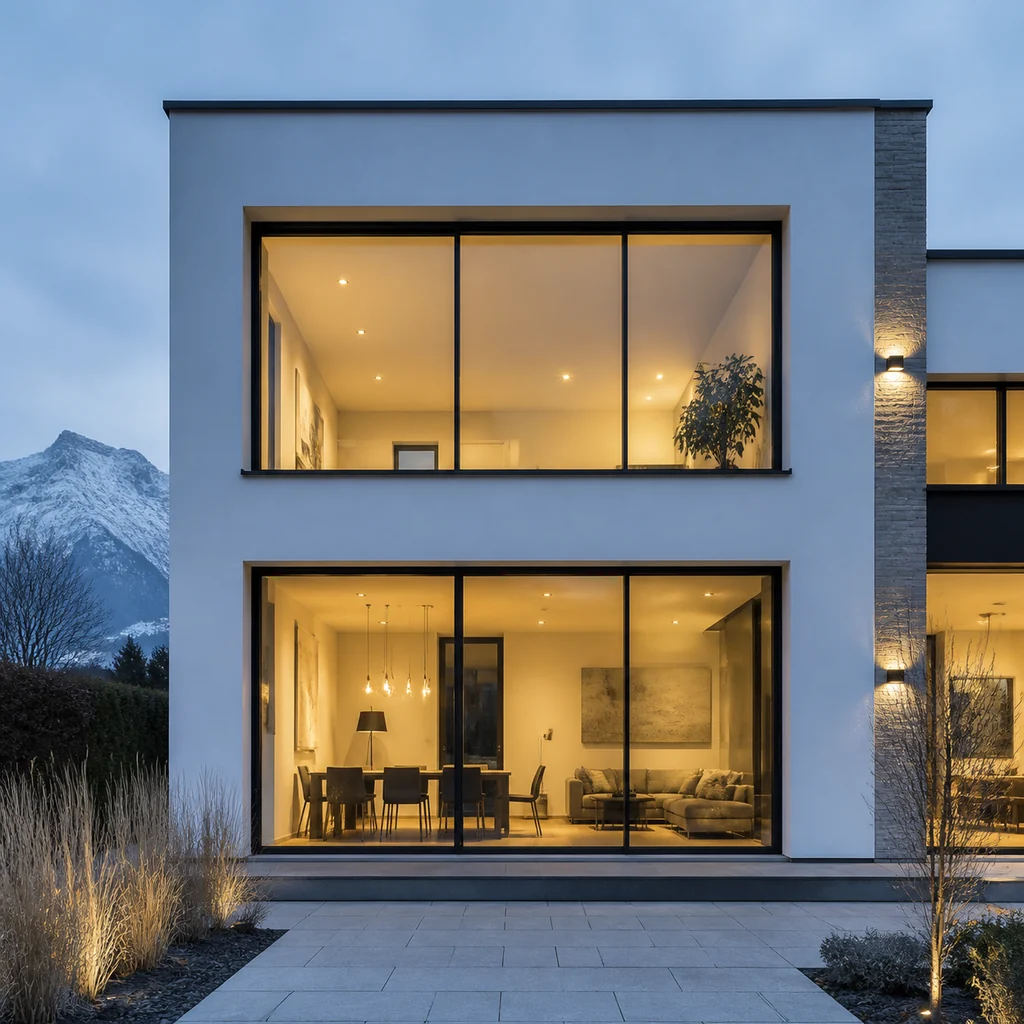

Representative Application
How Narrow Frame Aluminum Windows Work in Real Architecture
A project-context visualization showing the product in a suitable building, opening and climate scenario. Final specifications are engineered to your drawings.
